Continuous Monitoring of Damage Using Piezoelectric Quartz Crystal Based Dosimeters

M. Odlyha ¹, B.Ormsby², K.Pratt ³, J.M.Slater¹, M.Ryhl-Svendsen⁴, T.Padfield⁴, V.Smith⁵, L.Bullock⁵ , F de Santis⁶ & J.J.Boon⁷

Birkbeck College, University of London, United Kingdom ¹
Tate Conservation Department, United Kingdom ²
University College London, United Kingdom ³
National Museum of Denmark ⁴
El Alcazar, Spain ⁵
Istituto Inquinamento Atmosferico, CNR, Italy ⁶
FOM Institute for Atomic and Molecular Physics, The Netherlands ⁷

PART 2: SLIDES FROM PRESENTATION

Slide 1

---

Slide 2

---

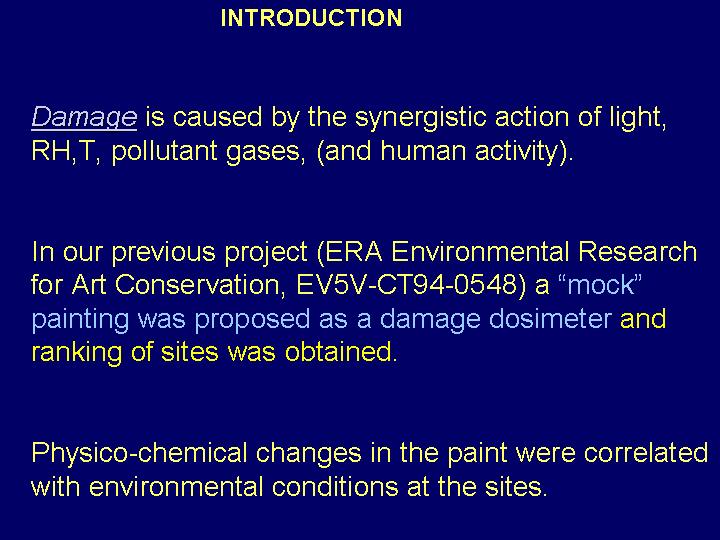

Slide 3

---

Slide 4

---

Slide 5

---

Slide 6

---

Slide 7

---

Slide 8

---

Slide 9

---

Slide 10

---

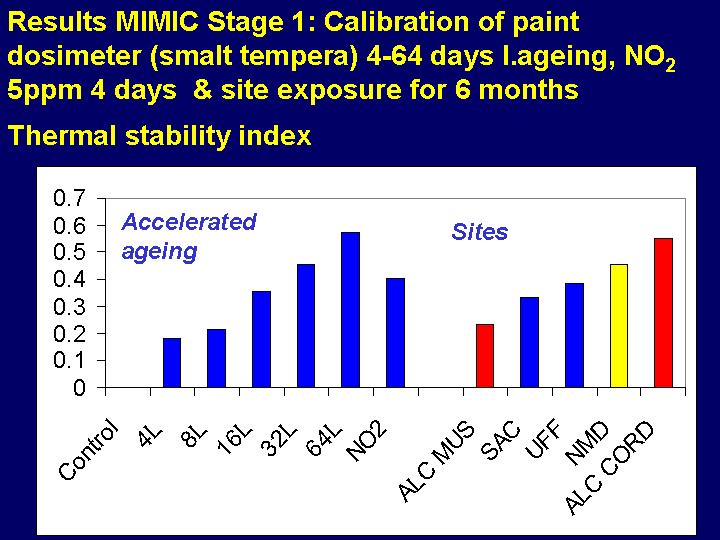

Slide 11

---

Slide 12

---

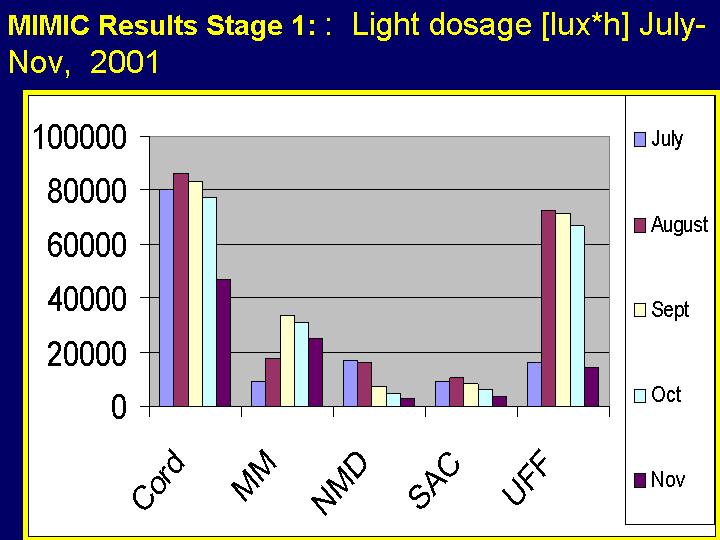

Slide 13

---

Slide 14

---

Slide 15

---

Slide 16

---

Slide 17

---

Slide 18

---

Slide 19

---

Slide 20

---

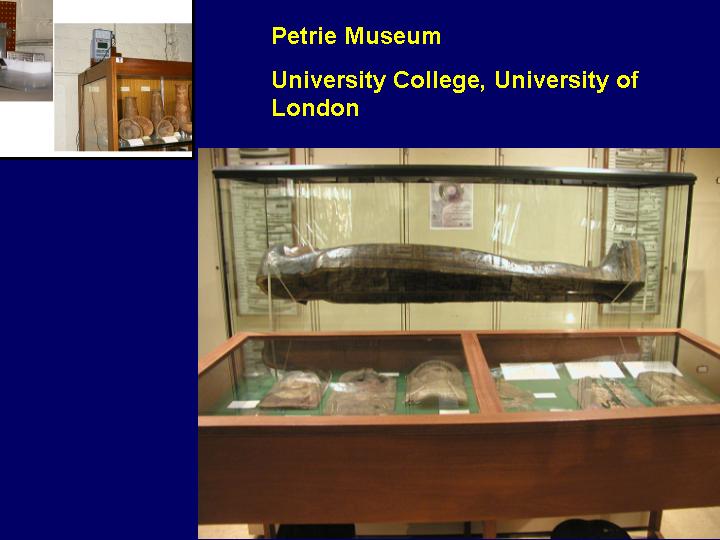

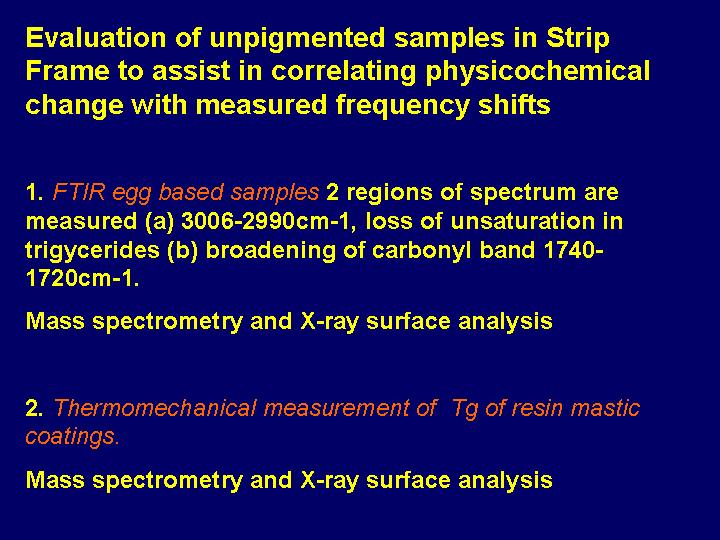

Slide 21

---

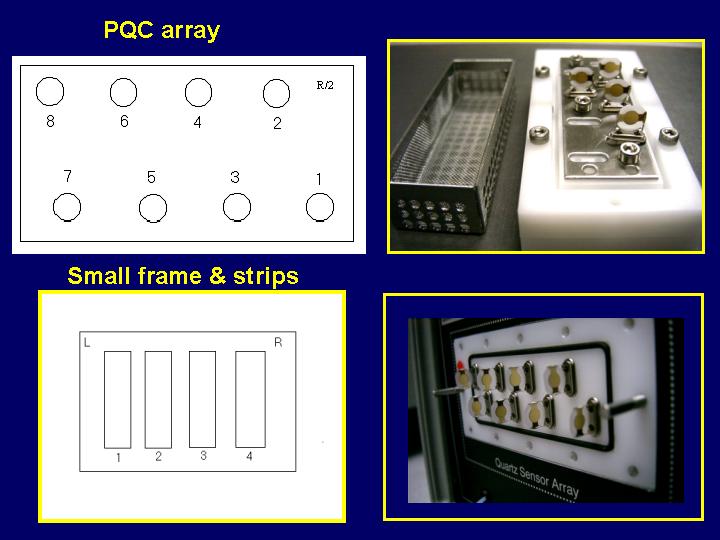

Slide 22

---

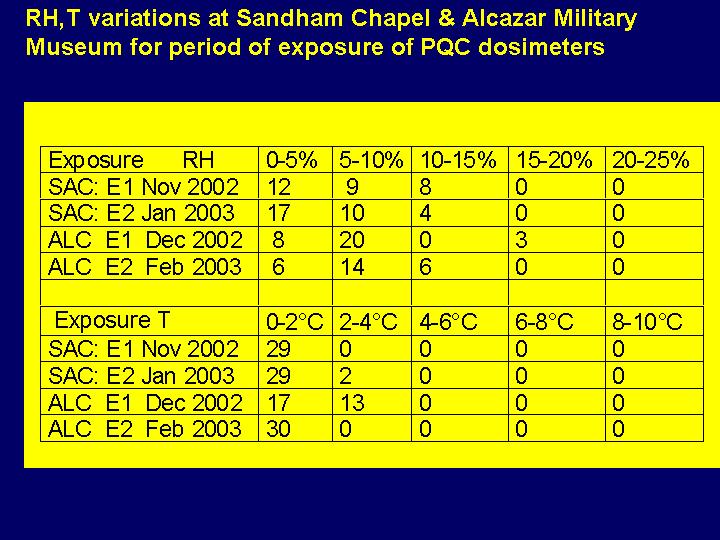

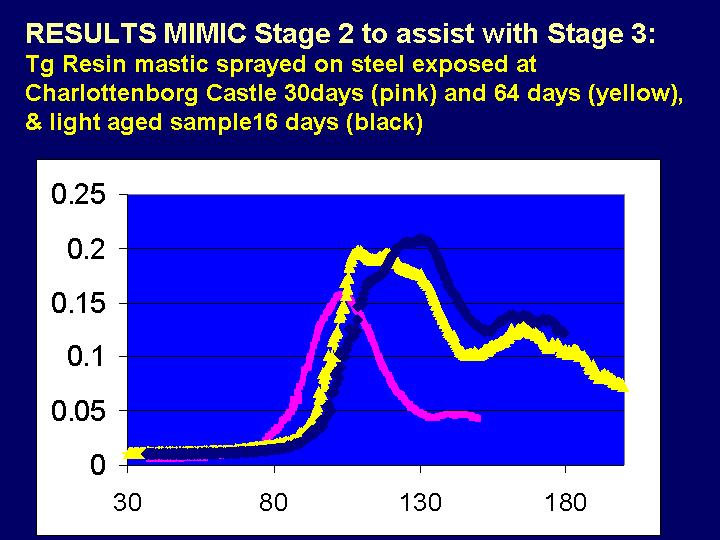

Slide 23

---

Slide 24

---

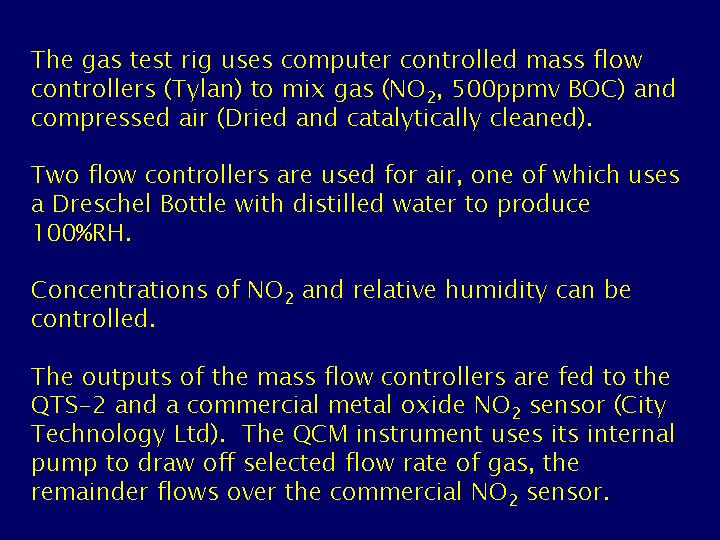

Slide 25

---

Slide 26

---

Slide 27

---

Slide 28

---

Slide 29

---

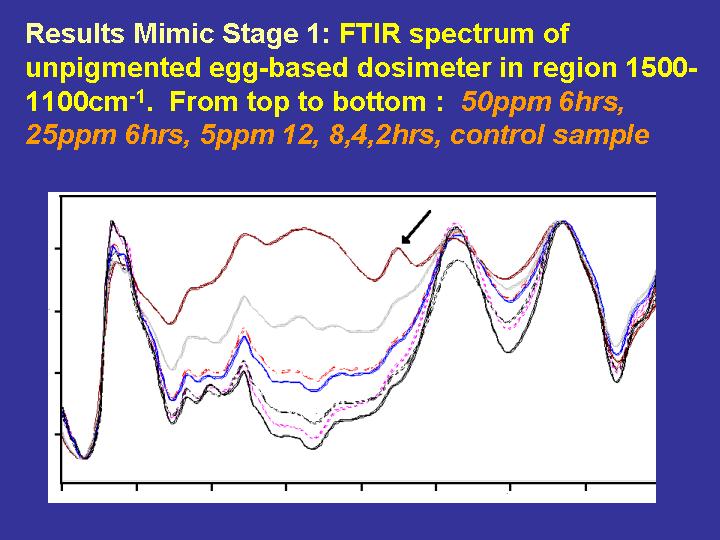

Slide 30

---

Slide 31

---

Slide 32

---

Slide 33

---

Slide 34

---

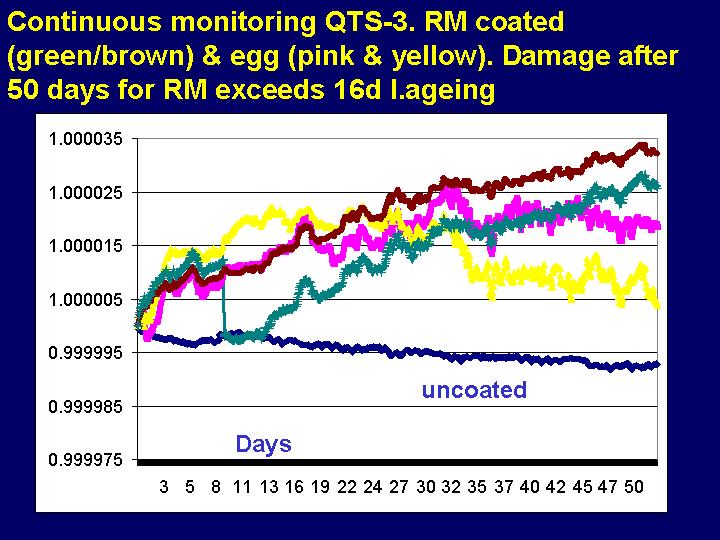

Slide 35

---

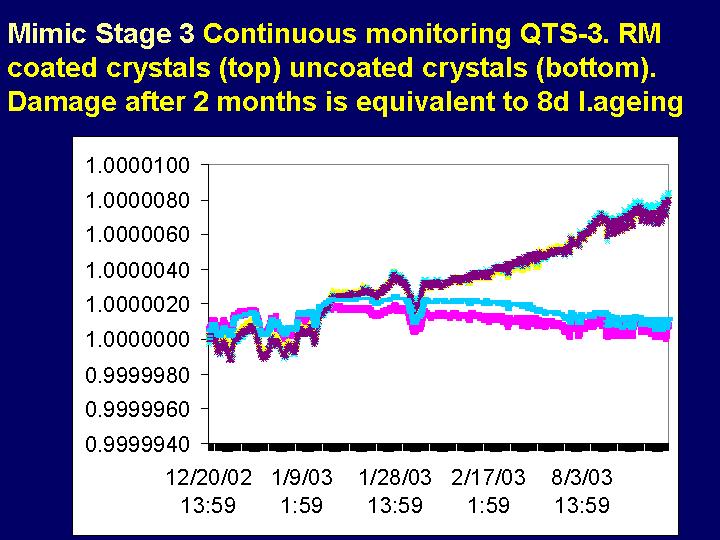

Slide 36

---

Slide 37

---

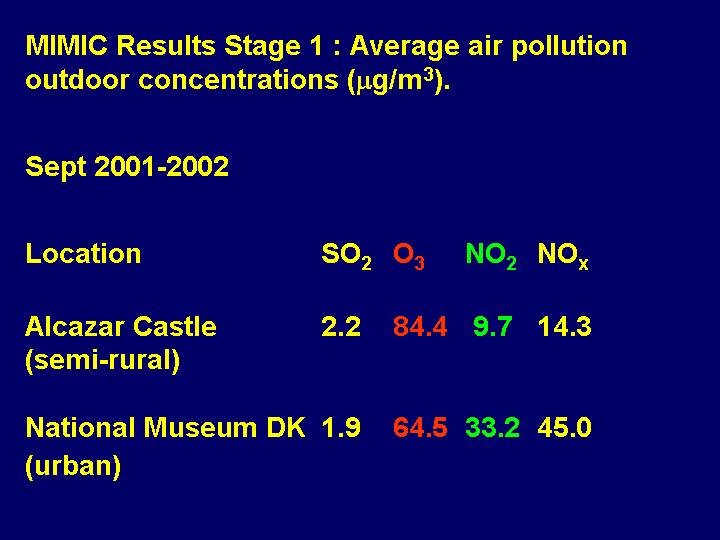

Slide 38

---

Slide 39

---

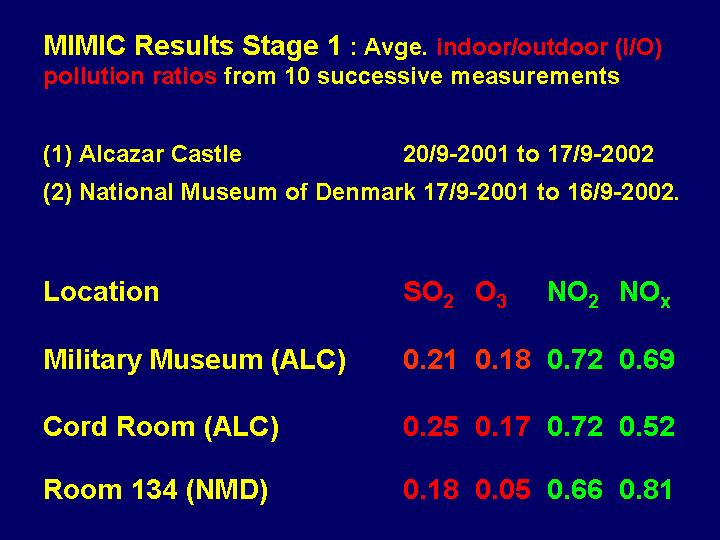

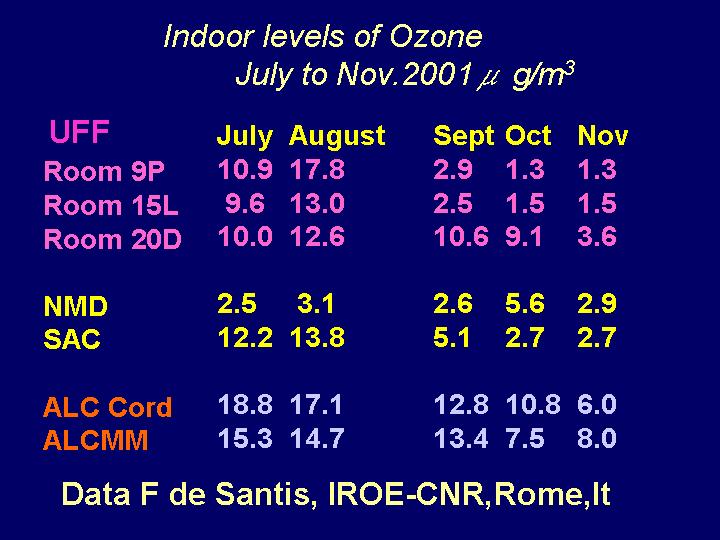

Slide 40

---

Slide 41

---

Slide 42

---

Slide 43

---

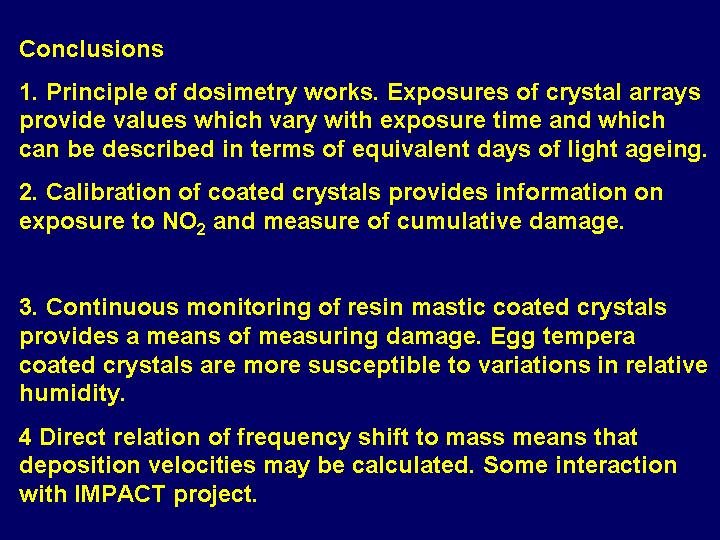

Slide 44

---

Slide 45
