IAQ 2003 Norwich, Presentation 4, PART 2:

Impact of Heating System on the Dimensional Change of Wood - A case study of the church in Rocca Pietore, Italy

R. Kozlowski*, L. Bratasz, P. Kloda, M. Kozarzewski, and J. Zajaczkowska-Kloda

*Institute of Catalysis and Surface Chemistry, Polish Academy of Sciences


PART 2: SLIDES FROM PRESENTATION


Slide 1

Slide 1

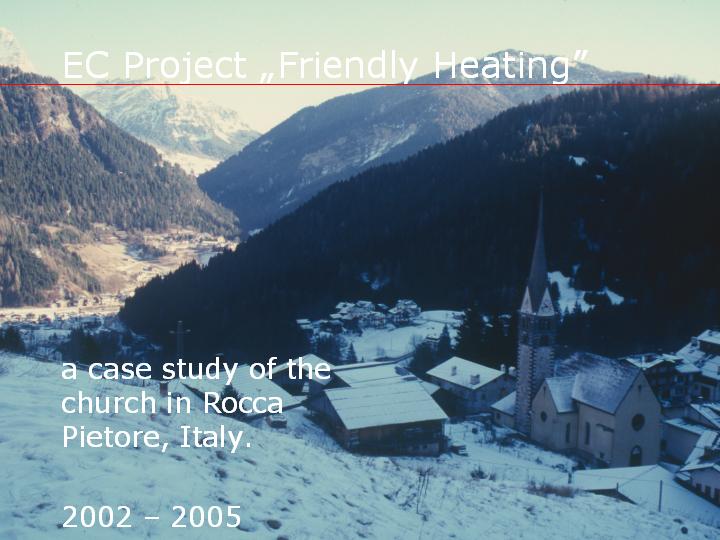

Slide 2

Slide 2

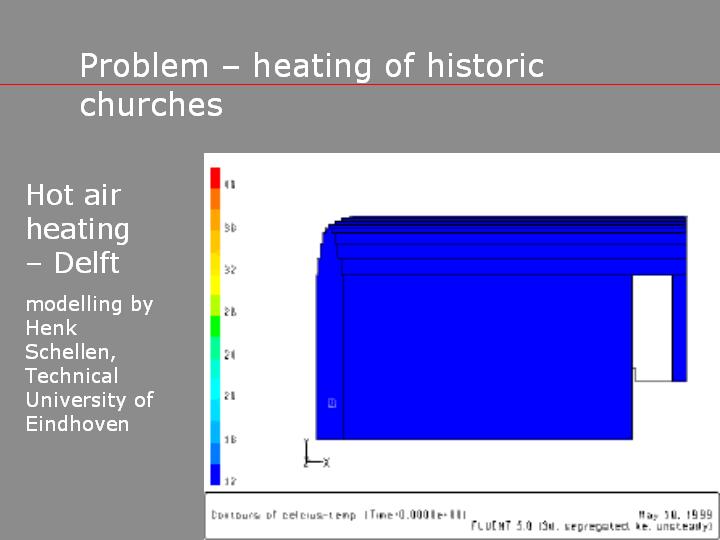

Hot heating model

Slide 3

Click on slide 3 for the hot air heating model

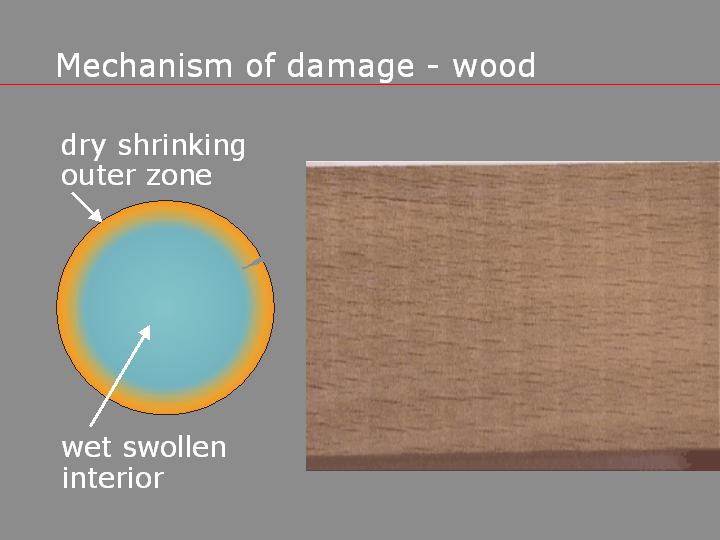

dry shrinking of wood

Slide 4

Click on slide 4 for image of dry shrinking of wood

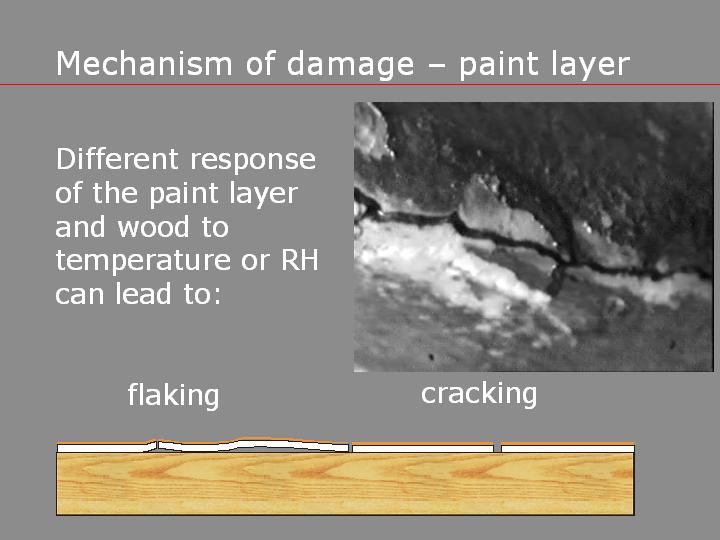

Slide 5

Slide 5


Slide 6

Slide 6

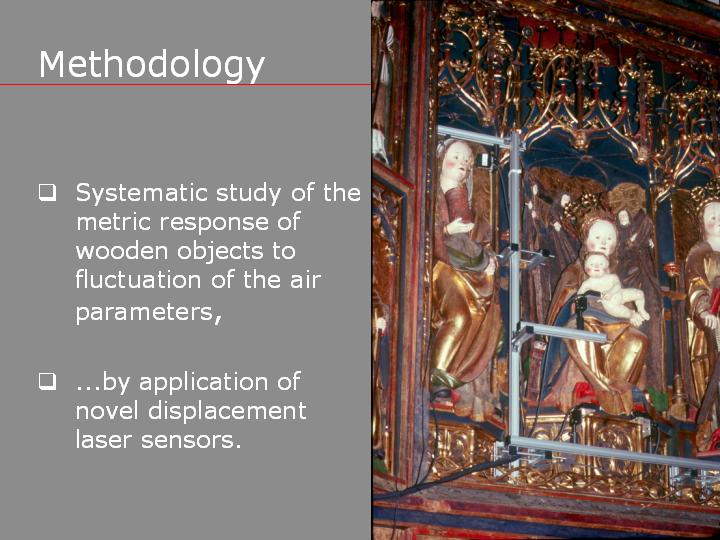

Slide 7

Slide 7

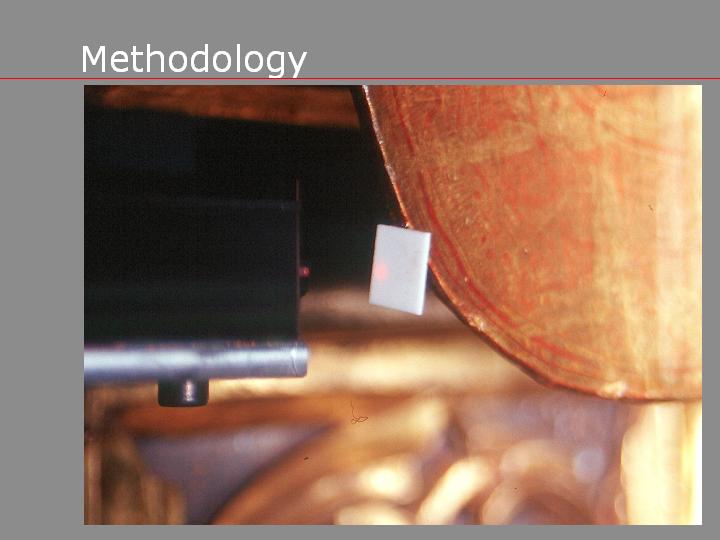

Slide 8

Slide 8


Slide 9

Slide 9

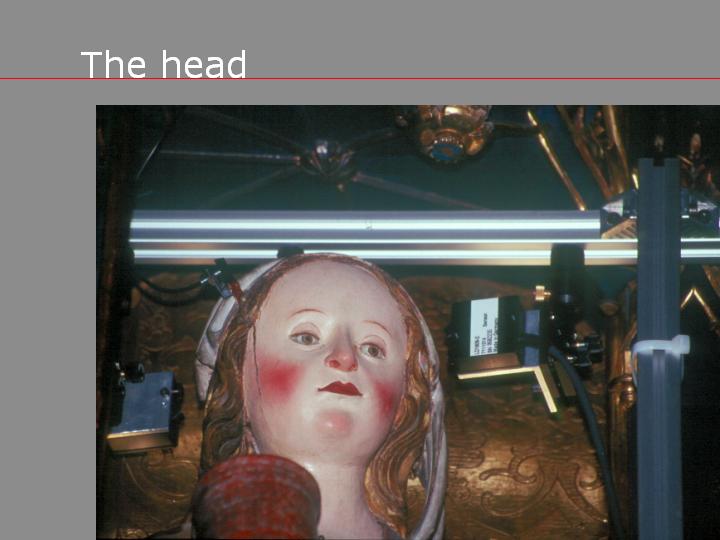

Slide 10

Slide 10


Slide 11

Slide 11


Slide 12

Slide 12

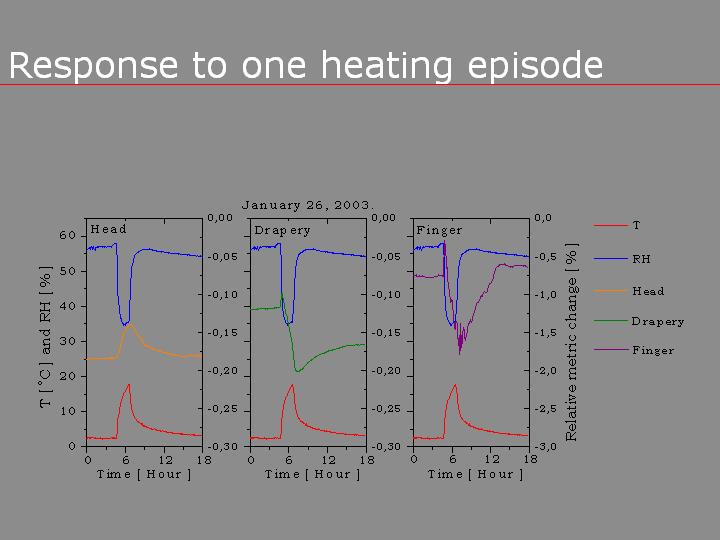

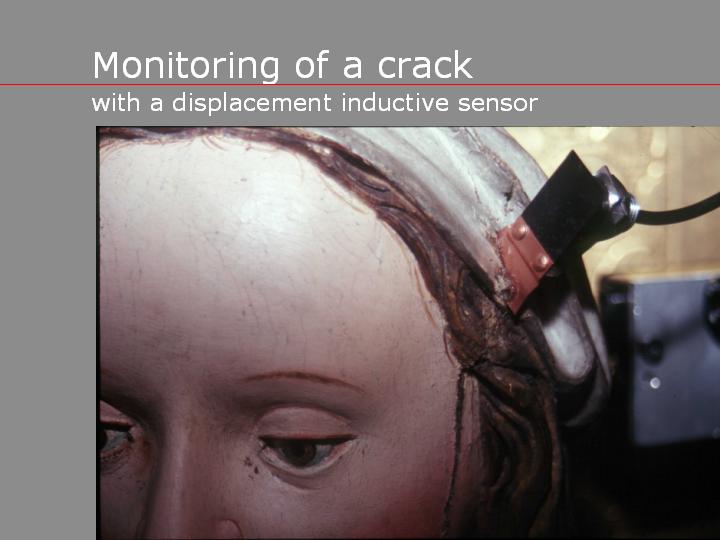

Slide 13

Slide 13

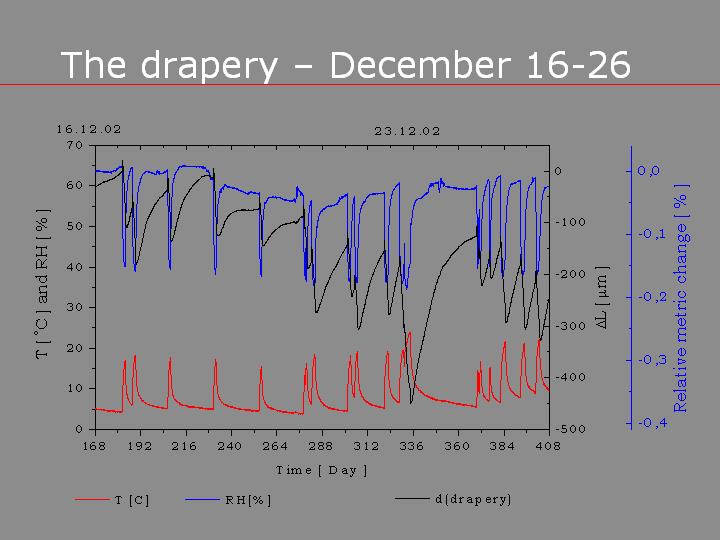

Slide 14

Slide 14

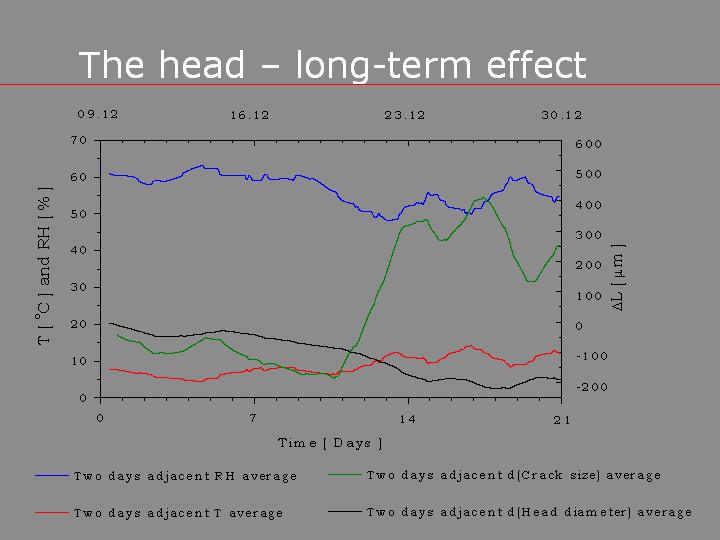

Slide 15

Slide 15

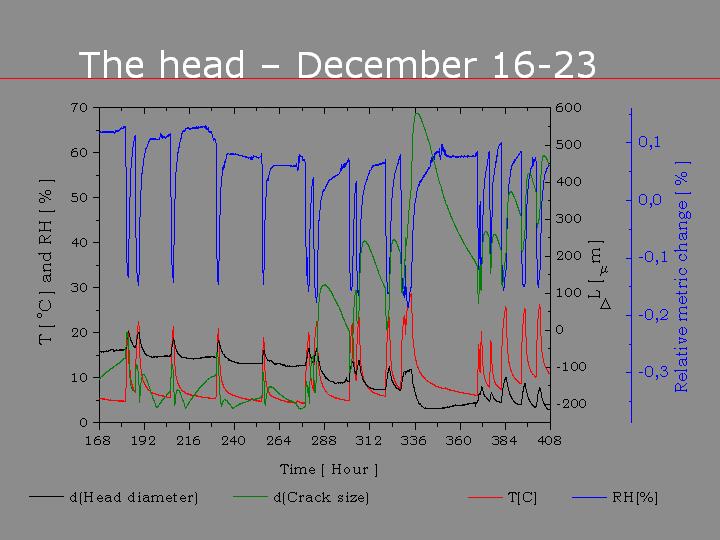

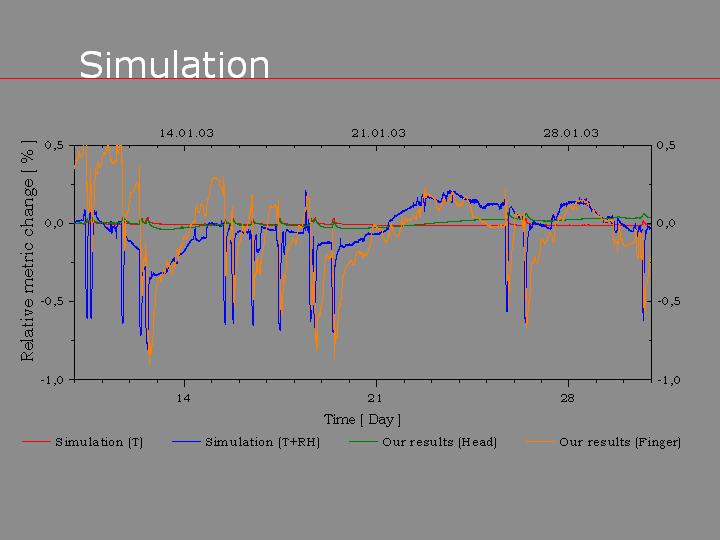

Slide 16

Slide 16

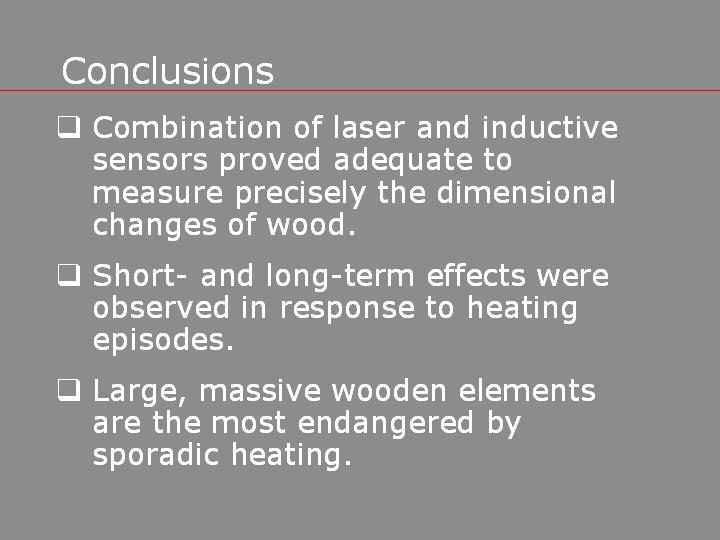

Slide 17

Slide 17

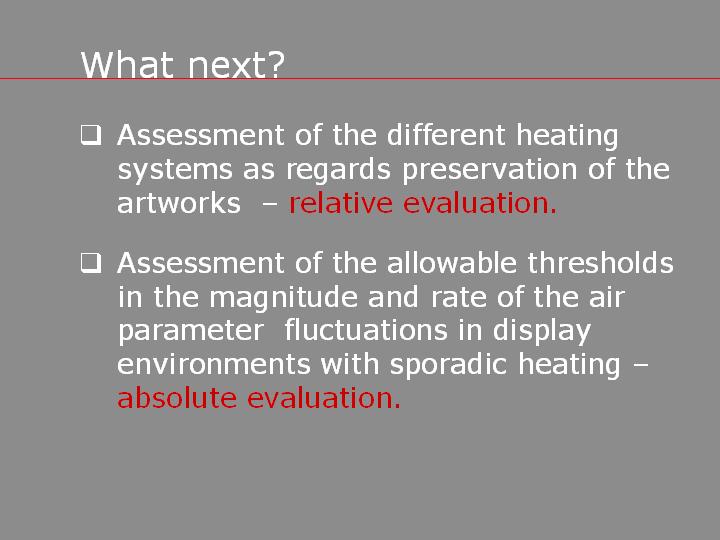

Slide 18

Slide 18


Back to Part 1: Abstract
