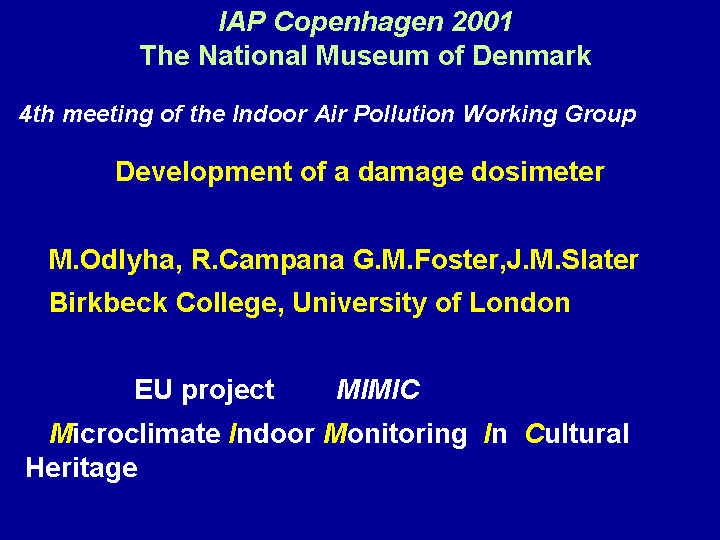

DEVELOPMENT OF A DAMAGE ASSESSMENT DOSIMETER USING PIEZOELECTRIC QUARTZ CRYSTALS COATED WITH EGG BASED FILMS

M.Odlyha, G.M. Foster, and J.M Slater

Birkbeck College, University of London

PART 2: SLIDES FROM PRESENTATION (first half):

Slide 1

---

Slide 2

---

Slide 3

---

Slide 4

---

Slide 5

---

Slide 6

---

Slide 7

---

Slide 8

---

Slide 9

---

Slide 10

---

Slide 11

---

Slide 12

---

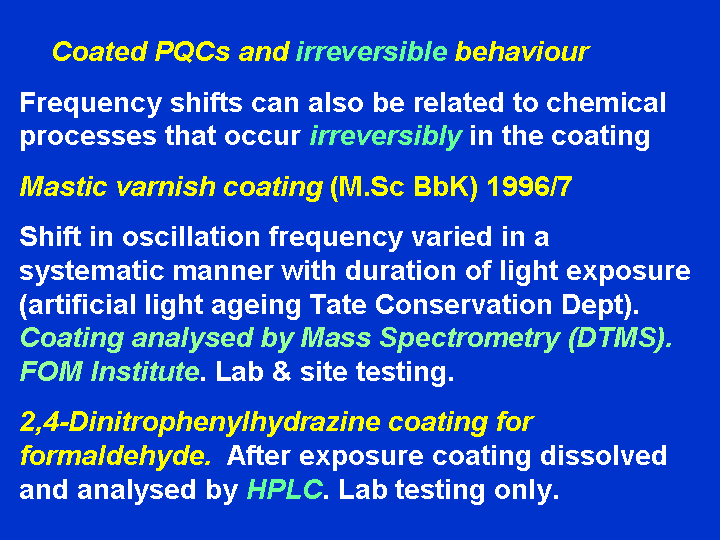

Slide 13

---

Slide 14

---

Slide 15

---

Slide 16

---

Slide 17

Second half of presentation: slide 18-33
